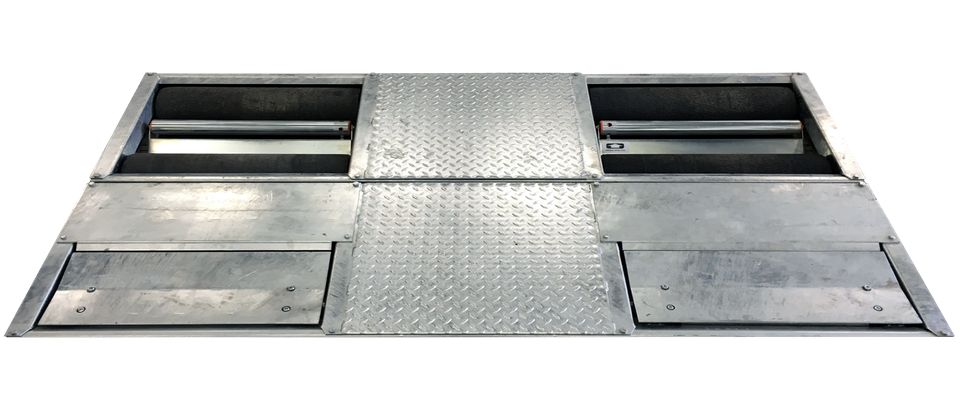

Suspension analysers ST2001 / ST2001-F

Single bed High-Speed suspension analyser for passenger cars, vans and light commercial vehicles with a standard track of 2200mm.

Measures two sides at the same time!

The suspension test gives an indication of the safety and the ride quality of the vehicle. Positioning the wheels correctly on the measuring plates is very easy. Only one motor means the measuring time is cut in half.

When combined with a brake tester, due to the integrated weighing system in the suspension analyser, the brake efficiencies (decelerations) of the vehicle will be calculated automatically and can be compared with legal requirements for the service- and parking brake.

Model ST2001 measuring quantities: adhesion*, damping*
Model ST2001-F measuring quantities: adhesion*, damping*, phase shift*.

(* depending on display connected).

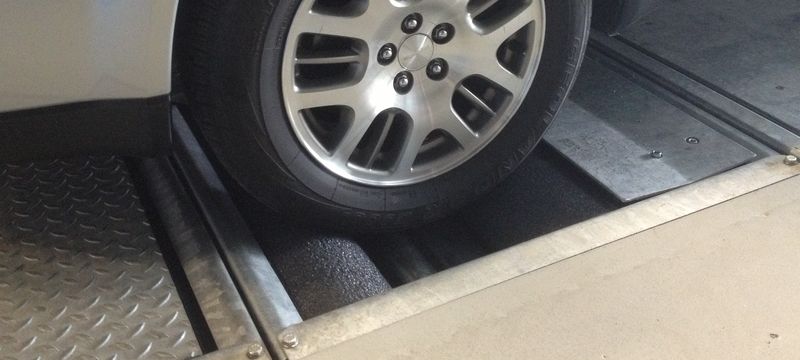

Add a roller brake tester and sideslip meter to create a complete test lane.

RT200x + ST2001
  • High quality.
  • Hot dip zinc chassis.
  • High range.

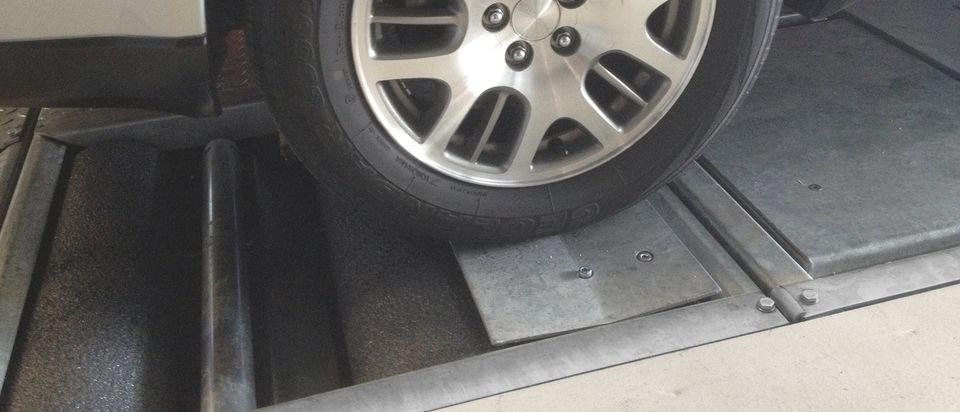

  • Easy positioning on suspension plates.
  • Faster than anything else.
  • Extensive analysis.


Maximum axle load
4000 kg
0-24 Hz
1 x 2,2 kW
Measuring range
2000 kg/wheel weighing
Measuring range
1250 kg/wheel testing
Measuring plate
78 x 20 cm (WxL)
700-2200 mm
234 x 66 x 30 cm
Hot dip zinc
